ComputerCraft Event System Flowchart

[KingofGamesYami]

Reposted from here

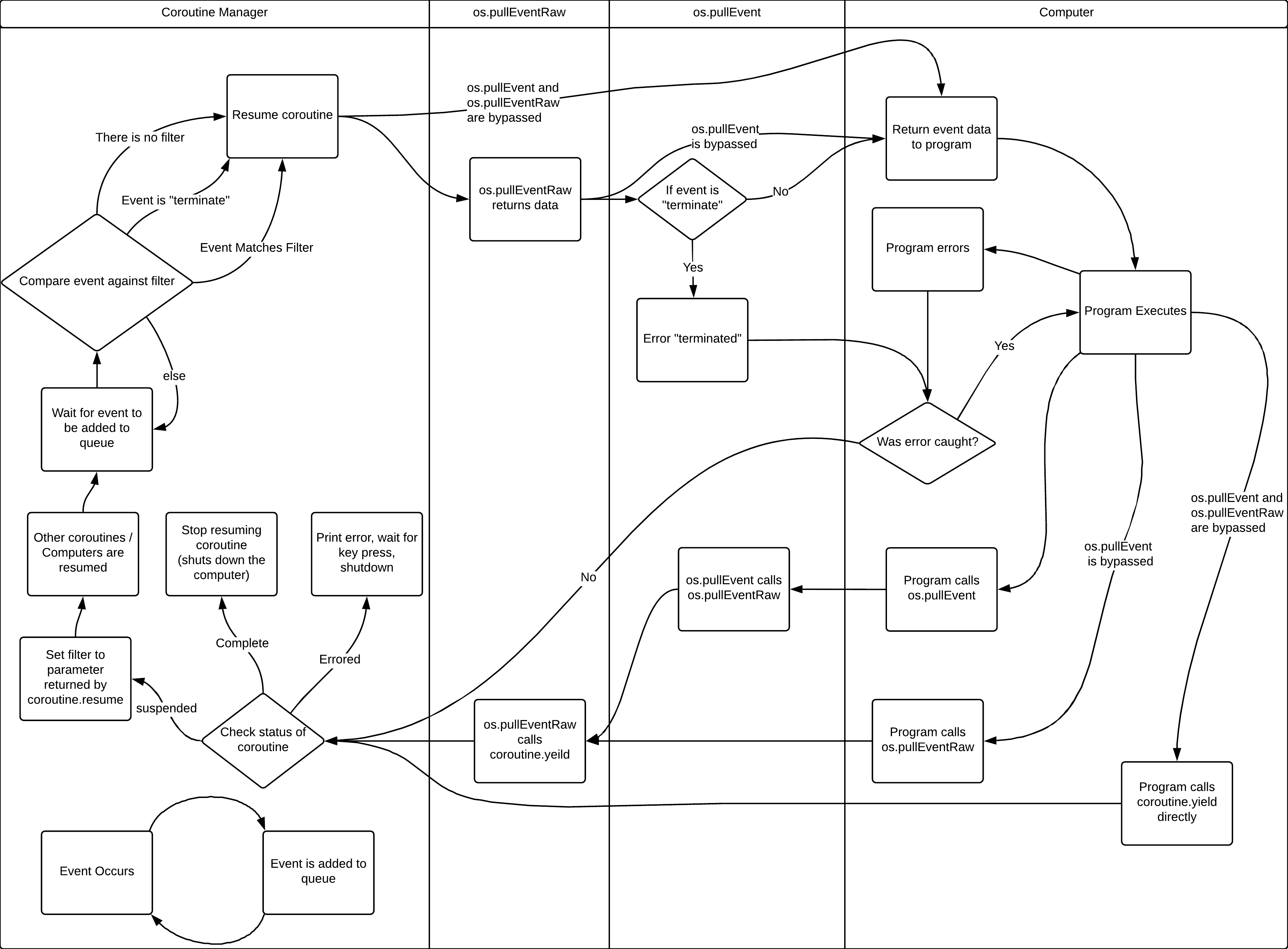

I decided to make a visual of the event system. It's not by any means perfect, but I'd like to say it's pretty nice.

Made with lucidchart.

[Lignum]

Oof, this is a great image for scaring beginners out of using the coroutine API. Either way, very nice chart, you did an awesome job!

[Yemmel]

It's fascinating to see how it all comes together, you wouldn't imagine it was this complex. Very cool stuff!

[Incin]

Great stuff. Only thing I would say is that in the bottom right under the condition that the program calls coroutine.yield directly, if I'm not mistaken it will still check the status of the coroutine and perform the appropriate action instead of bypassing that and going directly to the "set filter" section.

[KingofGamesYami]

Great stuff. Only thing I would say is that in the bottom right under the condition that the program calls coroutine.yield directly, if I'm not mistaken it will still check the status of the coroutine and perform the appropriate action instead of bypassing that and going directly to the "set filter" section.

Yeah, that's a mistake.  I'll see if I can figure out what account I made this on and if I can update it.

[KingofGamesYami]

Fixed!

[QuickMuffin8782]

Awwwwweeessssooooommmmeeee cccchhhhhaaaaarrrrrrtttttt!
